UCPLE201CO - SNR

UCPLE201CO

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger.

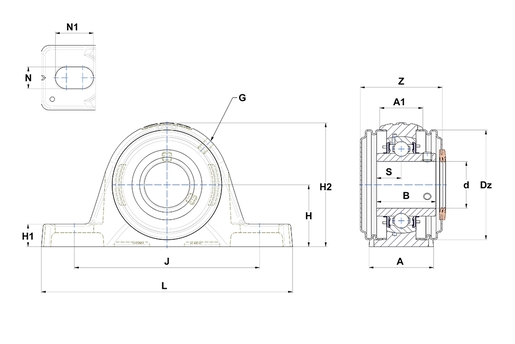

In the figure, bearing units are presented with one open and one closed cover. The product you have chosen is equipped with two open covers.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

CAD file

Technical datasheet

KitThis kit contains the following reference(s) - UC201G2 - SCO204-12 - PLE204N
PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DIMENSIONS

Housing width (A) 32 mm
Housing top width (A1) 22,5 mm
Width of IR (B) 31 mm
Shaft dia (d) 12 mm
Outer dia of cover (Dz) 54 mm
Grease fitting (G) M6x1
Distance mounting base to centerline spheric. seating diam. (H) 31,8 mm
Housing foot height (H1) 12,5 mm
Housing height (H2) 63,7 mm
Mounting hole distance (J) 94,5 mm
Housing length (L) 126,5 mm
Mounting hole dimension (N) 11 mm
Mounting hole length (N1) 17 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 12,7 mm
width over covers 30,8 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 12,8 kN
Static load rating (C0) 6,65 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 0,64 kg
Recommended tightening torque for set screw [Nm] 5,5 N-m
