UCPLE204L4CO - SNR

UCPLE204L4CO

Grey cast housing, radial insert ball bearing with socket set screws,L4 sealing system.

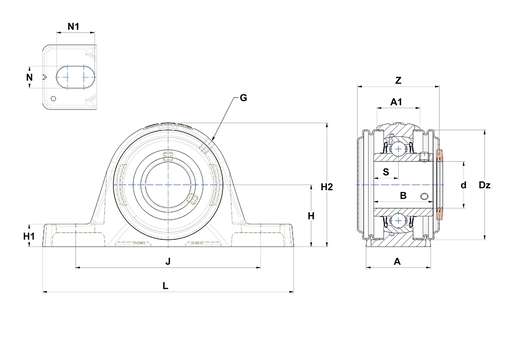

In the figure, bearing units are presented with one open and one closed cover. The product you have chosen is equipped with two open covers.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC204G2L4 - SCO204-20 - PLE204N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR
A - Housing width32 mm
A1 - Housing top width22,5 mm
B - Width of Inner Ring31 mm
d - Shaft diameter20 mm
Dz - Outer diameter of cover54 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.31,8 mm
H1 - Housing foot height12,5 mm
H2 - Housing height63,7 mm
J - Mounting holes distance94,5 mm
L - Housing length126,5 mm
N - Mounting hole dimension11 mm
N1 - Mounting hole length17 mm
S - Distance front side/bearing centre12,7 mm
Z - Width over covers45,1 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating12,8 kN
C0 - Static load rating6,65 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass0,628 kg
Recommended tightening torque for set screw5,5 N-m
