UCPLE208L4 - SNR

UCPLE208L4

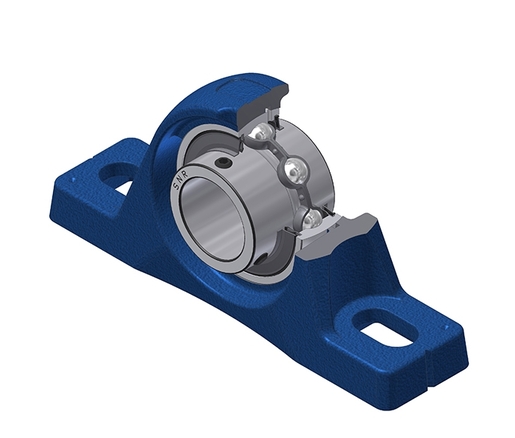

Grey cast housing, radial insert ball bearing with socket set screws,L4 sealing system

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC208G2L4 - PLE208
PLEASE LOGIN to add products to your basket
Contact us

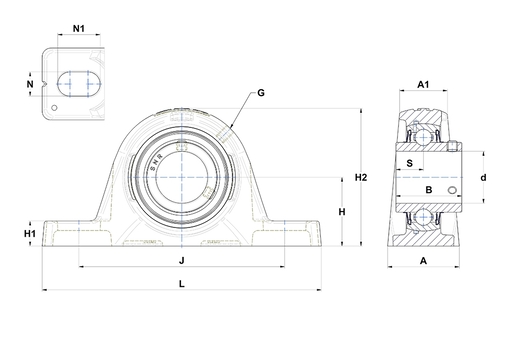

PRODUCT DEFINITION
BrandSNR
A - Housing width51 mm
A1 - Housing top width34,5 mm
B - Width of Inner Ring49,2 mm
d - Shaft diameter40 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.49,2 mm
H1 - Housing foot height18,5 mm
H2 - Housing height98,5 mm
J - Mounting holes distance137,5 mm
L - Housing length180,5 mm
N - Mounting hole dimension14 mm
N1 - Mounting hole length24,5 mm
S - Distance front side/bearing centre19 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating29,6 kN
C0 - Static load rating18,2 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass1,94 kg
Recommended tightening torque for set screw11,5 N-m
