UCPLE209-28NT04 - SNR

UCPLE209-28NT04

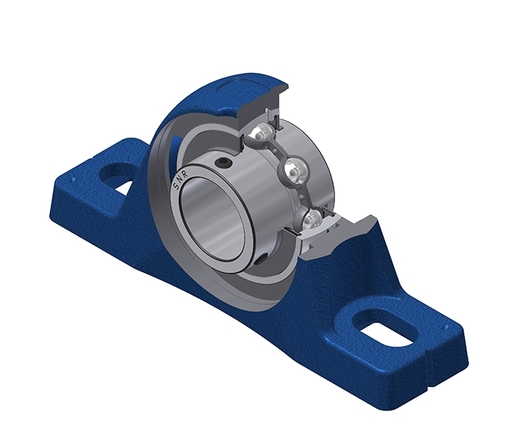

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC209-28G2T04 - PLE209N
PLEASE LOGIN to add products to your basket
Contact us

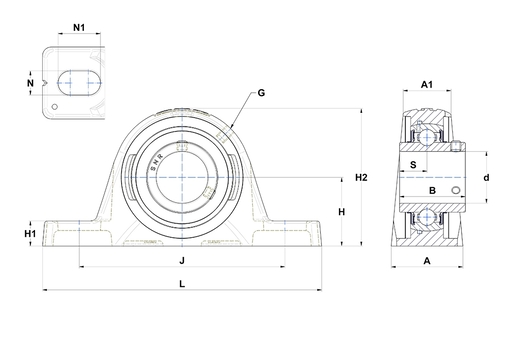

PRODUCT DEFINITION
BrandSNR
A - Housing width54 mm
A1 - Housing top width35 mm
B - Width of Inner Ring49,2 mm
d - Shaft diameter44,45 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.52,4 mm
H1 - Housing foot height18,4 mm
H2 - Housing height106,4 mm
J - Mounting holes distance151,5 mm
L - Housing length197,5 mm
N - Mounting hole dimension14 mm
N1 - Mounting hole length24 mm
S - Distance front side/bearing centre19 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating31,85 kN
C0 - Static load rating20,8 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass2,1 kg
Recommended tightening torque for set screw8 N-m
