UCPLE210T20 - SNR

UCPLE210T20

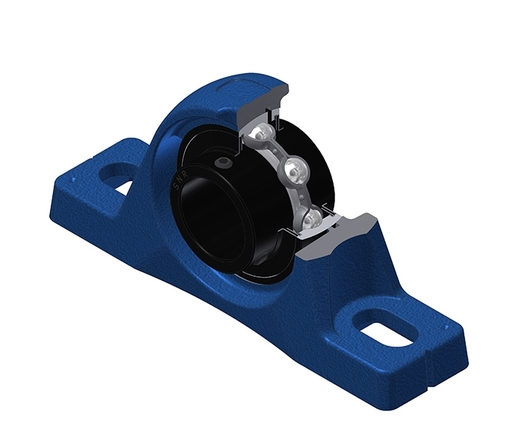

Grey cast housing, radial insert ball bearing with socket set screws,labyrinth seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

3D file

Technical datasheet

KitThis kit contains the following reference(s) - UC210G2T20 - PLE210
PLEASE LOGIN to add products to your basket
Contact us

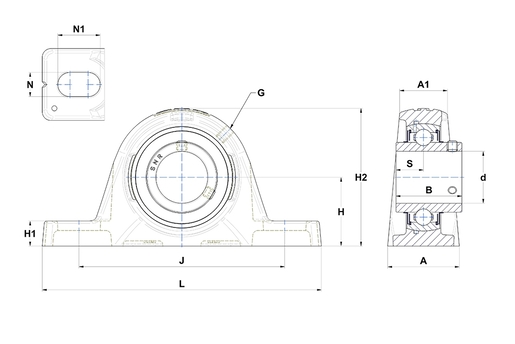

PRODUCT DEFINITION
BrandSNR
A - Housing width55 mm
A1 - Housing top width36 mm
B - Width of Inner Ring51,6 mm
d - Shaft diameter50 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.55,6 mm
H1 - Housing foot height19,3 mm
H2 - Housing height114 mm
J - Mounting holes distance164 mm
L - Housing length214 mm
N - Mounting hole dimension14 mm
N1 - Mounting hole length27 mm
S - Distance front side/bearing centre19 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating35,1 kN
C0 - Static load rating23,2 kN
Operating temperature min.-20 °C
Operating temperature max.200 °C
OTHER FEATURES
Mass2,9 kg
Recommended tightening torque for set screw22 N-m
