UCPLE211-34N - SNR

UCPLE211-34N

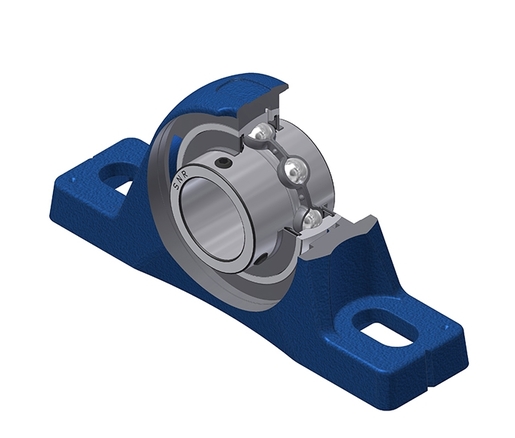

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC211-34G2 - PLE211N
PLEASE LOGIN to add products to your basket
Contact us

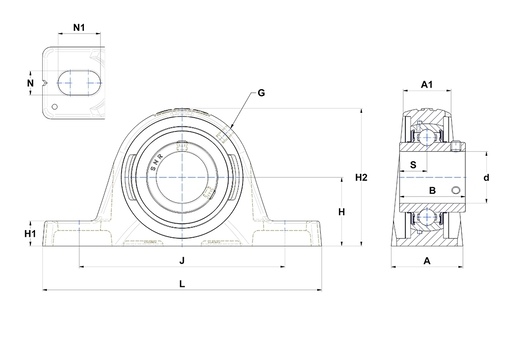

PRODUCT DEFINITION
BrandSNR
A - Housing width60 mm
A1 - Housing top width39,5 mm
B - Width of Inner Ring55,6 mm
d - Shaft diameter53,975 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.61,3 mm
H1 - Housing foot height23,2 mm
H2 - Housing height128 mm
J - Mounting holes distance170,5 mm
L - Housing length219,5 mm
N - Mounting hole dimension18 mm
N1 - Mounting hole length26 mm
S - Distance front side/bearing centre22,2 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating43,55 kN
C0 - Static load rating29,2 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass3,47 kg
Recommended tightening torque for set screw16,8 N-m
