UCPLE212-39T04CO - SNR

UCPLE212-39T04CO

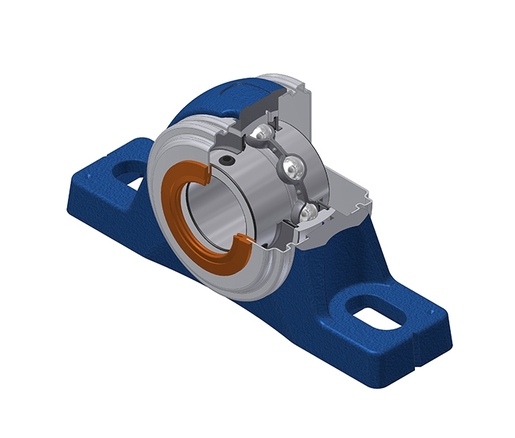

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC212-39G2T04 - SCOU212-39 - PLE212N
PLEASE LOGIN to add products to your basket
Contact us
Specs

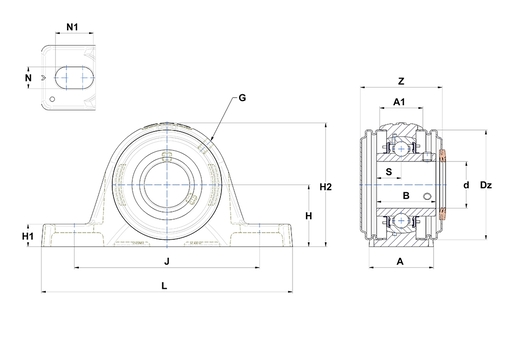

PRODUCT DIMENSIONS

Housing width (A) 79,4 mm
Housing top width (A1) 50,8 mm
Width of IR (B) 65,1 mm
Shaft dia (d) 61,913 mm
Outer dia of cover (Dz) 120 mm
Grease fitting (G) M6x1
Distance mounting base to centerline spheric. seating diam. (H) 68,3 mm
Housing foot height (H1) 28,6 mm
Housing height (H2) 138,1 mm
Mounting hole distance (J) 193,7 mm
Housing length (L) 245 mm
Mounting hole dimension (N) 18 mm
Mounting hole length (N1) 29,1 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 25,4 mm
width over covers 66 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 52,5 kN
Static load rating (C0) 32,8 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 5,303 kg
Recommended tightening torque for set screw [Nm] 16,8 N-m
