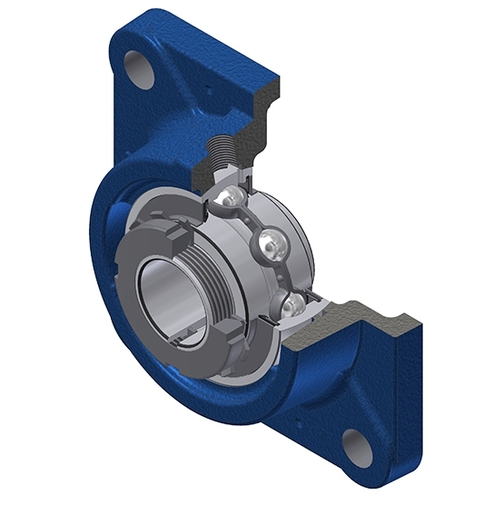

Grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger.
Deviation from figure: For some sizes, the bearing inserts may protrude beyond the mounting surface of the housing.
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
3D file
Technical datasheet
Specs

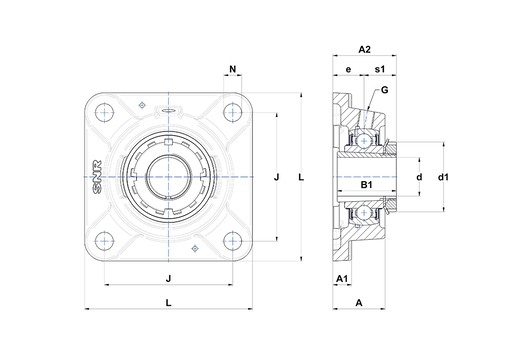

PRODUCT DEFINITION | |
|---|---|
| A - Housing height | 59 mm |
| A1 - Housing foot height / flange height | 20 mm |
| A2 - Total height from mounting surface | 76,8 mm |
| B - Width of Inner Ring | 41 mm |
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 73 mm |
| d - Shaft diameter | 65 mm |
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 98 mm |
| e - Distance mounting surface to bearing center | 41,3 mm |
| G - Grease fitting | R1/8" |
| J - Mounting holes distance | 153 mm |
| L - Housing width / diameter | 197 mm |
| N - Mounting hole dimension | 23 mm |
| s1 - Distance nut to middle of bearing raceway | 35,5 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load rating | 66 kN |
| C0 - Static load rating | 49,5 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
OTHER FEATURES | |
|---|---|
| Mass | 6,65 kg |
| Adapter sleeve reference | H2315 |
