UKFL311-32H - SNR

UKFL311-32H

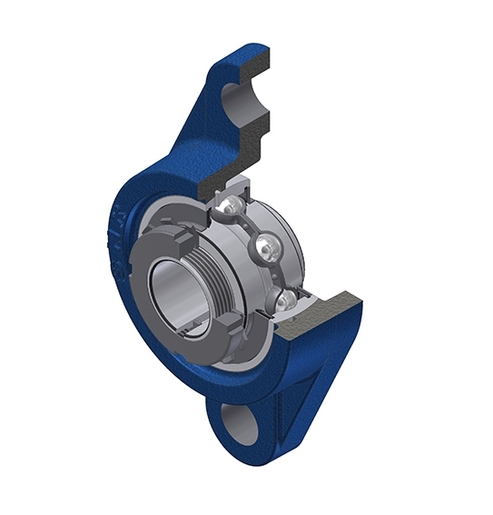

Grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UK311G2H-32
PLEASE LOGIN to add products to your basket
Contact us
Specs

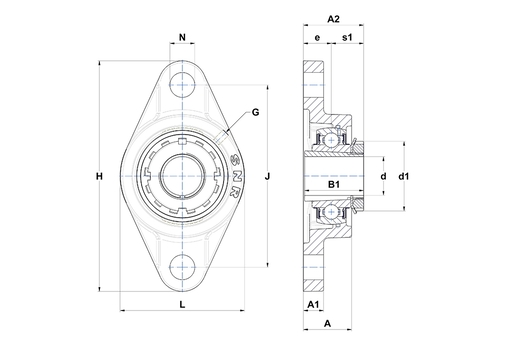

PRODUCT DIMENSIONS

Housing height (A) 52 mm
Housing foot height / flange height (A1) 20 mm
Total height (Housing + Insert) from mouting surface (A2) 64 mm
Width of IR (B) 43 mm
Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) 59 mm
Shaft dia (d) 50,8 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 75 mm
Distance mounting surface - bearing center (e) 30 mm
Grease fitting (G) System.Collections.Generic.List`1[System.String]
Housing length, width or diameter (H) 250 mm
Mounting hole distance (J) 198 mm
Housing width / dia (L) 150 mm
Mounting hole dimension (N) System.Collections.Generic.List`1[System.String]
Distance nut - middle of bearing raceway (s1) 34 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 71,5 kN
Static load rating (C0) 44,8 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 4,8 kg
Adapter sleeve reference System.Collections.Generic.List`1[System.String]
