UKFLE213HCC - SNR

UKFLE213HCC

Grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger.

Deviation from figure: For some sizes, the bearing inserts may protrude beyond the mounting surface of the housing.

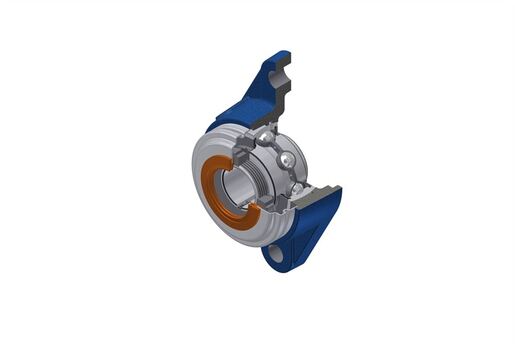

In the figure, flanged bearing units are presented with open cover. The product you have chosen is equipped with closed cover.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

3D file

Technical datasheet

KitThis kit contains the following reference(s) - UK213G2H - SCC213 - SCC213 - FLE213N
PLEASE LOGIN to add products to your basket
Contact us
Specs

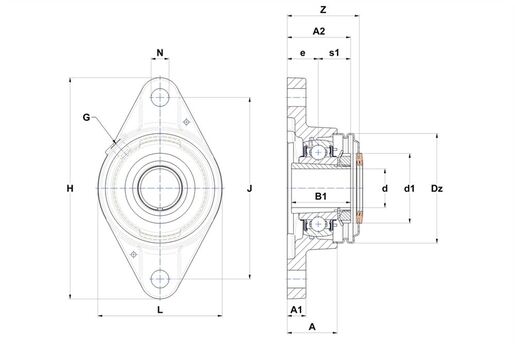

PRODUCT DIMENSIONS

Housing height (A) 57 mm
Housing foot height / flange height (A1) 18 mm
Total height (Housing + Insert) from mouting surface (A2) 70 mm
Width of IR (B) 36 mm
Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) 65 mm
Shaft dia (d) 60 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 85 mm
Outer dia of cover (Dz) 132 mm
Distance mounting surface - bearing center (e) 38 mm
Grease fitting (G) System.Collections.Generic.List`1[System.String]
Housing length, width or diameter (H) 258 mm
Mounting hole distance (J) 216 mm
Housing width / dia (L) 160 mm
Mounting hole dimension (N) System.Collections.Generic.List`1[System.String]
width over covers 82,4 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 57,2 kN
Static load rating (C0) 40 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 5,821 kg
Adapter sleeve reference System.Collections.Generic.List`1[System.String]
