Grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger.
Deviation from figure: For some sizes, the bearing inserts may protrude beyond the mounting surface of the housing.

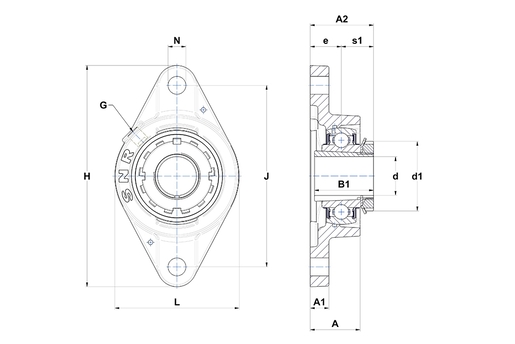

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
|Housing height (A)||57 mm|
|Housing foot height / flange height (A1)||18 mm|
|Total height (Housing + Insert) from mouting surface (A2)||73,5 mm|
|Width of IR (B)||41 mm|
|Overall width IR incl. eccent. locking collar/adapt. sleeve(B1)||73 mm|
|Shaft dia (d)||63,5 mm|
|Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1)||98 mm|
|Distance mounting surface - bearing center (e)||38 mm|
|Grease fitting (G)||System.Collections.Generic.List`1[System.String]|
|Housing length, width or diameter (H)||258 mm|
|Mounting hole distance (J)||216 mm|
|Housing width / dia (L)||160 mm|
|Mounting hole dimension (N)||System.Collections.Generic.List`1[System.String]|
|Distance nut - middle of bearing raceway (s1)||35,5 mm|
|Dynamic load rating (C)||66 kN|
|Static load rating (C0)||49,5 kN|
|Operating temperature min.||-20 °C|
|Operating temperature max.||100 °C|
|Adapter sleeve reference||System.Collections.Generic.List`1[System.String]|
