UKP210HCC - SNR

UKP210HCC

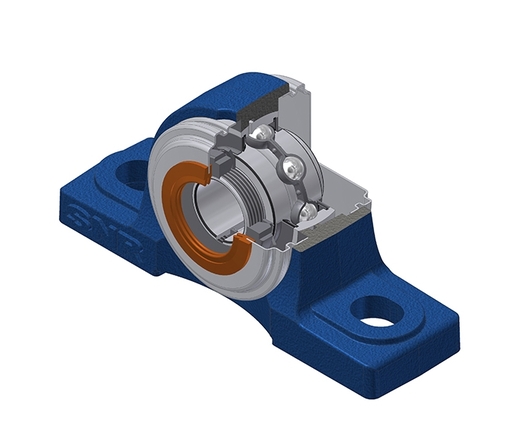

Grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

3D file

Technical datasheet

KitThis kit contains the following reference(s) - UK210G2H - SCO210-45 - SCC210 - P210N
PLEASE LOGIN to add products to your basket
Contact us

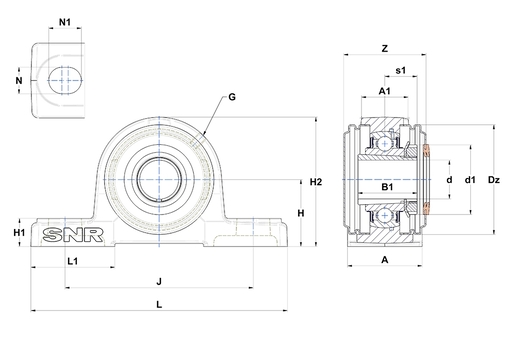

PRODUCT DEFINITION
BrandSNR
A - Housing width60 mm
A1 - Housing top width39 mm
B - Width of Inner Ring31 mm
d - Shaft diameter45 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve70 mm
Dz - Outer diameter of cover100 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.57,2 mm
H1 - Housing foot height22 mm
H2 - Housing height114 mm
J - Mounting holes distance159 mm
L - Housing length206 mm
L1 - Housing foot length65 mm
N - Mounting hole dimension20 mm
N1 - Mounting hole length25 mm
Z - Width over covers76 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating35,1 kN
C0 - Static load rating23,2 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass3,164 kg
Adapter sleeve designationH2310
