UKP216H - SNR

UKP216H

Grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

CAD file

Technical datasheet

KitThis kit contains the following reference(s) - UK216G2H - P216
PLEASE LOGIN to add products to your basket
Contact us
Specs

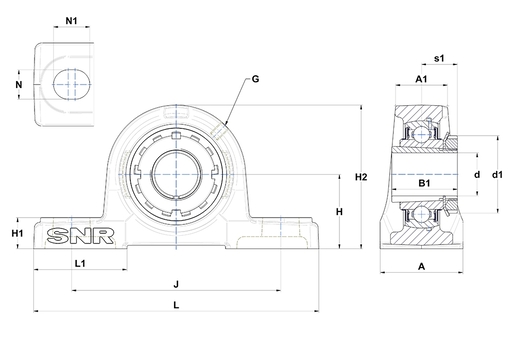

PRODUCT DIMENSIONS

Housing width (A) 78 mm
Housing top width (A1) 51 mm
Width of IR (B) 44 mm
Shaft dia (d) 70 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 105 mm
Grease fitting (G) M10x1
Distance mounting base to centerline spheric. seating diam. (H) 88,9 mm
Housing foot height (H1) 30 mm
Housing height (H2) 175 mm
Mounting hole distance (J) 232 mm
Housing length (L) 292 mm
Housing foot length (L1) 91 mm
Mounting hole dimension (N) 25 mm
Mounting hole length (N1) 31 mm
Distance nut - middle of bearing raceway (s1) 39 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 72,5 kN
Static load rating (C0) 54,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 9,44 kg
Adapter sleeve reference H2316
