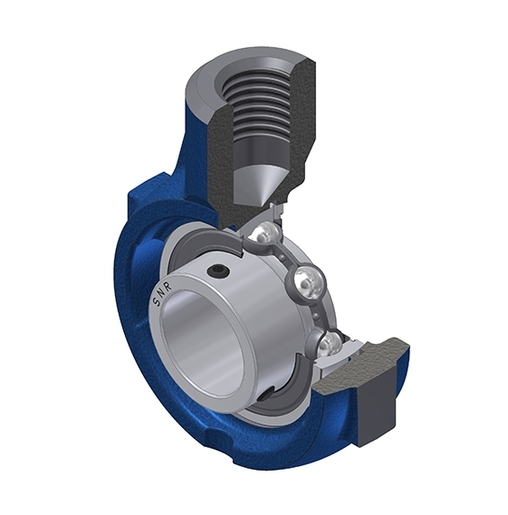

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
Technical datasheet
Specs

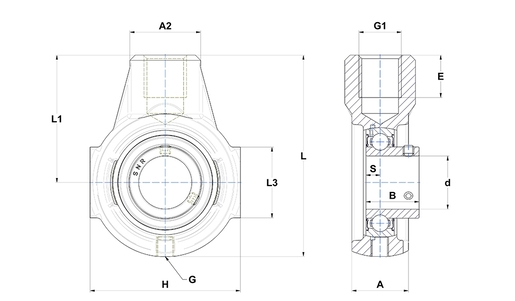

PRODUCT DIMENSIONS | |
|---|---|
| Housing width (A) | 40 mm |
| Width over loc. slot flange(T/ST)/width at mount. hole(EHE)(A2) | 40 mm |
| Total height - frame + insert (A5) | 31 mm |
| Width of IR (B) | 41,2 mm |
| Shaft dia (d) | 42,863 mm |
| Mounting hole thread depth (E) | 24 mm |
| Grease fitting (G) | R1/8" |
| Thread size (G1) | M24 |
| Housing length, width or diameter (H) | 110 mm |
| Housing length (L) | 145 mm |
| Distance from attachment end face to bearing centerline (L1) | 90 mm |
| Length of location slot (T/ST)/ guidance length (EHE) (L3) | 45 mm |
| Dist. cent. of raceway to face IR on side opp. lock. device (S) | 10,2 mm |
| Wrench size (SW) | 3,969 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (C) | 31,85 kN |
| Static load rating (C0) | 20,8 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
OTHER FEATURES | |
|---|---|
| Mass | 1,92 kg |
| Recommended tightening torque for set screw [Nm] | 8 N-m |
