USF204-12T20 - SNR

USF204-12T20

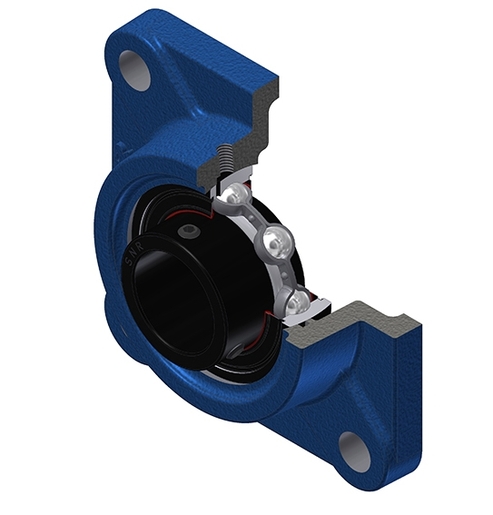

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US204-12G2T20 - F204
PLEASE LOGIN to add products to your basket
Contact us
Specs

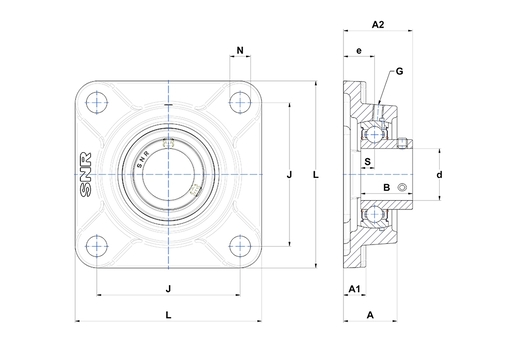

PRODUCT DIMENSIONS

Housing height (A) 25,5 mm
Housing foot height / flange height (A1) 11 mm
Total height (Housing + Insert) from mouting surface (A2) 33 mm
Width of IR (B) 25 mm
Shaft dia (d) 19,05 mm
Distance mounting surface - bearing center (e) 15 mm
Grease fitting (G) M6x1
Mounting hole distance (J) 64 mm
Housing width / dia (L) 86 mm
Mounting hole dimension (N) 12 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 7 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 12,8 kN
Static load rating (C0) 6,65 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 0,55 kg
Recommended tightening torque for set screw [Nm] 3,7 N-m
