USF204NT04 - SNR

USF204NT04

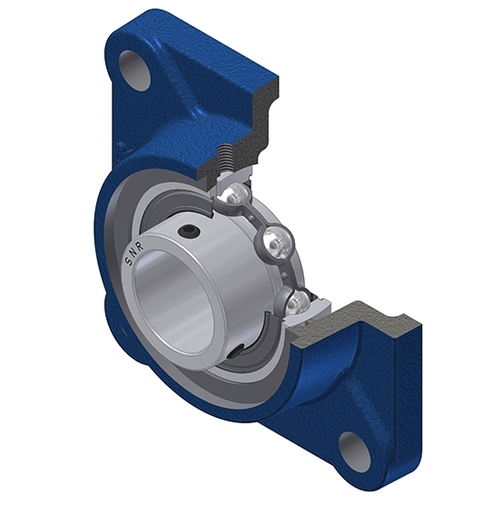

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US204G2T04 - F204N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

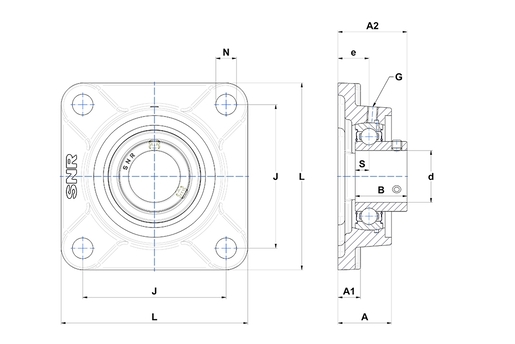

A - Housing height25,5 mm
A1 - Housing foot height / flange height11 mm
A2 - Total height from mounting surface33 mm
B - Width of Inner Ring25 mm
d - Shaft diameter20 mm
e - Distance mounting surface to bearing center15 mm
G - Grease fittingM6x1
J - Mounting holes distance64 mm
L - Housing width / diameter86 mm
N - Mounting hole dimension12 mm
S - Distance front side/bearing centre7 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating12,8 kN
C0 - Static load rating6,65 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass0,54 kg
Recommended tightening torque for set screw5,5 N-m
