USF207-22T20CC - SNR

USF207-22T20CC

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for high-temp. applications.

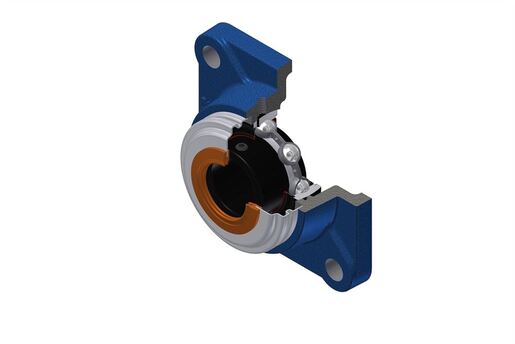

In the figure, flanged bearing units are presented with open cover. The product you have chosen is equipped with closed cover.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US207-22G2T20 - SCC207 - F207N
PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

A - Housing height 34 mm
A1 - Housing foot height / flange height 15 mm
A2 - Total height from mounting surface 42,5 mm
B - Width of Inner Ring 32 mm
d - Shaft diameter 34,925 mm
Dz - Outer diameter of cover 80 mm
e - Distance mounting surface to bearing center 19 mm
G - Grease fitting M6x1
J - Mounting holes distance 92 mm
L - Housing width / diameter 117 mm
N - Mounting hole dimension 14 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 8,5 mm
Z - Width over covers 48,3 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 25,7 kN
C0 - Static load rating 15,2 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 1,452 kg
Recommended tightening torque for set screw 8 N-m
