USF208-24T04CC - SNR

USF208-24T04CC

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications.

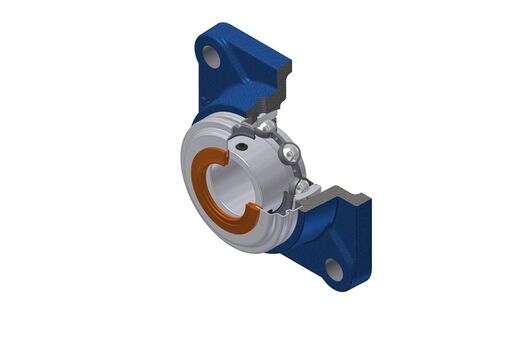

In the figure, flanged bearing units are presented with open cover. The product you have chosen is equipped with closed cover.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US208-24G2T04 - SCC208 - F208N
PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

A - Housing height 36 mm
A1 - Housing foot height / flange height 15 mm
A2 - Total height from mounting surface 46 mm
B - Width of Inner Ring 34 mm
d - Shaft diameter 38,1 mm
Dz - Outer diameter of cover 88 mm
e - Distance mounting surface to bearing center 21 mm
G - Grease fitting M6x1
J - Mounting holes distance 102 mm
L - Housing width / diameter 130 mm
N - Mounting hole dimension 16 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 9 mm
Z - Width over covers 54,9 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 29,6 kN
C0 - Static load rating 18,2 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,908 kg
Recommended tightening torque for set screw 8 N-m
