USF209-26T20CC - SNR

USF209-26T20CC

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for high-temp. applications.

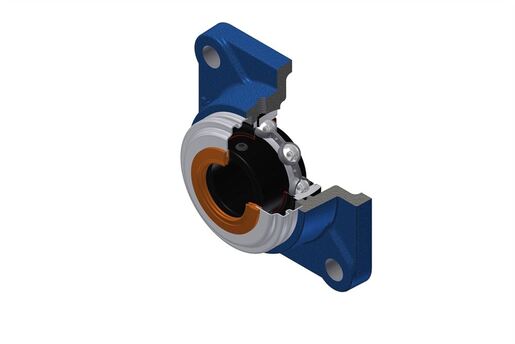

In the figure, flanged bearing units are presented with open cover. The product you have chosen is equipped with closed cover.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US209-26G2T20 - SCC209 - F209N
PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

A - Housing height 38 mm
A1 - Housing foot height / flange height 16 mm
A2 - Total height from mounting surface 53 mm
B - Width of Inner Ring 41,2 mm
d - Shaft diameter 41,275 mm
Dz - Outer diameter of cover 95 mm
e - Distance mounting surface to bearing center 22 mm
G - Grease fitting M6x1
J - Mounting holes distance 105 mm
L - Housing width / diameter 137 mm
N - Mounting hole dimension 16 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 10,2 mm
Z - Width over covers 56,3 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 31,85 kN
C0 - Static load rating 20,8 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 2,25 kg
Recommended tightening torque for set screw 8 N-m
