USFD205-15T04 - SNR

USFD205-15T04

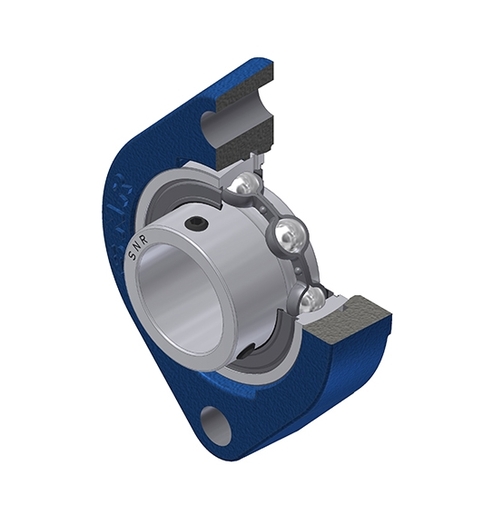

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US205-15G2T04 - FD205
PLEASE LOGIN to add products to your basket
Contact us
Specs

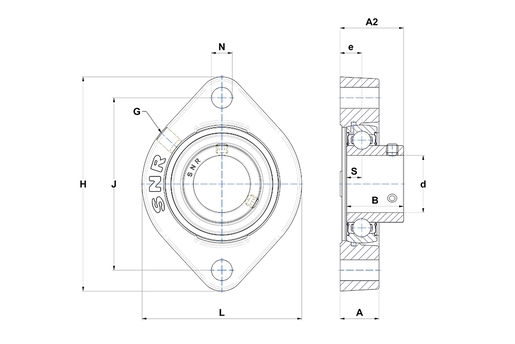

PRODUCT DIMENSIONS

Housing height (A) 17,5 mm
Total height (Housing + Insert) from mouting surface (A2) 29,4 mm
Width of IR (B) 27 mm
Shaft dia (d) 23,813 mm
Distance mounting surface - bearing center (e) 9,9 mm
Grease fitting (G) M6x1
Housing length, width or diameter (H) 97 mm
Mounting hole distance (J) 76,2 mm
Housing width / dia (L) 71 mm
Mounting hole dimension (N) 9 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 7,5 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 14 kN
Static load rating (C0) 7,88 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 0,48 kg
Recommended tightening torque for set screw [Nm] 3,7 N-m
