USFE205-15T20CC - SNR

USFE205-15T20CC

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for high-temp. applications.

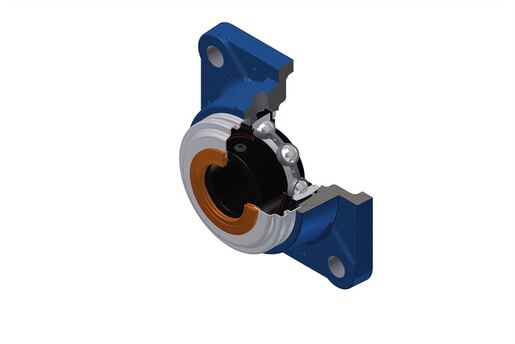

In the figure, flanged bearing units are presented with open cover. The product you have chosen is equipped with closed cover.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US205-15G2T20 - SCC205 - FE205N
PLEASE LOGIN to add products to your basket
Contact us
Specs

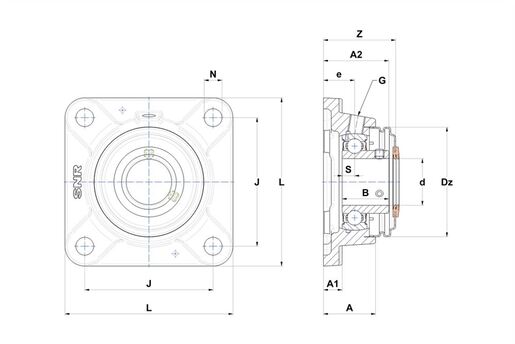

PRODUCT DEFINITION

A - Housing height 30 mm
A1 - Housing foot height / flange height 11 mm
A2 - Total height from mounting surface 38,5 mm
B - Width of Inner Ring 27 mm
d - Shaft diameter 23,813 mm
Dz - Outer diameter of cover 60 mm
e - Distance mounting surface to bearing center 19 mm
G - Grease fitting R1/8"
J - Mounting holes distance 70 mm
L - Housing width / diameter 95 mm
N - Mounting hole dimension 11,5 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 7,5 mm
Z - Width over covers 42,4 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 14 kN
C0 - Static load rating 7,88 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 0,807 kg
Recommended tightening torque for set screw 3,7 N-m
