USFE206-19NT04 - SNR

USFE206-19NT04

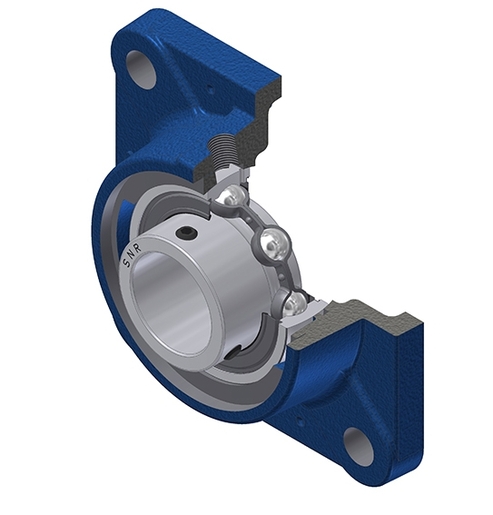

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US206-19G2T04 - FE206N
PLEASE LOGIN to add products to your basket
Contact us
Specs

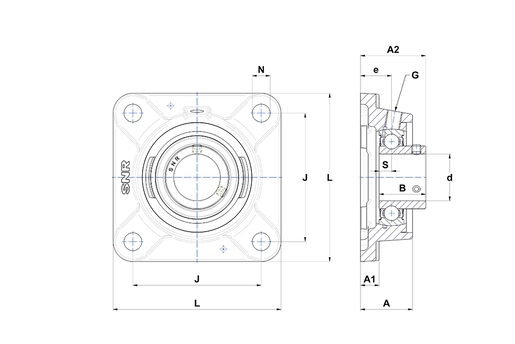

PRODUCT DIMENSIONS

Housing height (A) 33,5 mm
Housing foot height / flange height (A1) 12 mm
Total height (Housing + Insert) from mouting surface (A2) 42 mm
Width of IR (B) 30 mm
Shaft dia (d) 30,163 mm
Distance mounting surface - bearing center (e) 20 mm
Grease fitting (G) R1/8"
Mounting hole distance (J) 82,5 mm
Housing width / dia (L) 108 mm
Mounting hole dimension (N) 11,5 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 8 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 19,5 kN
Static load rating (C0) 11,2 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,07 kg
Recommended tightening torque for set screw [Nm] 3,7 N-m
