USFE208-24NT04 - SNR

USFE208-24NT04

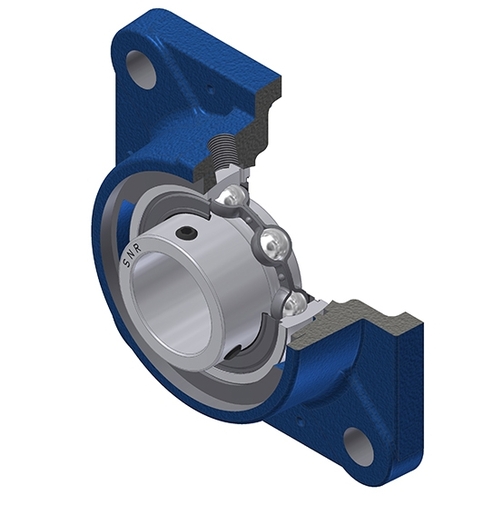

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US208-24G2T04 - FE208N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

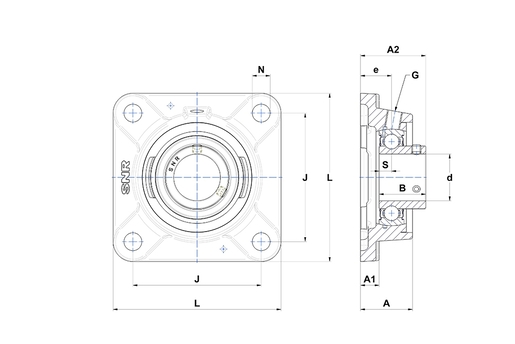

A - Housing height39,5 mm
A1 - Housing foot height / flange height13 mm
A2 - Total height from mounting surface49 mm
B - Width of Inner Ring34 mm
d - Shaft diameter38,1 mm
e - Distance mounting surface to bearing center24 mm
G - Grease fittingR1/8"
J - Mounting holes distance101,5 mm
L - Housing width / diameter130 mm
N - Mounting hole dimension14 mm
S - Distance front side/bearing centre9 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating29,6 kN
C0 - Static load rating18,2 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass2 kg
Recommended tightening torque for set screw8 N-m
