USFE211-32T04 - SNR

USFE211-32T04

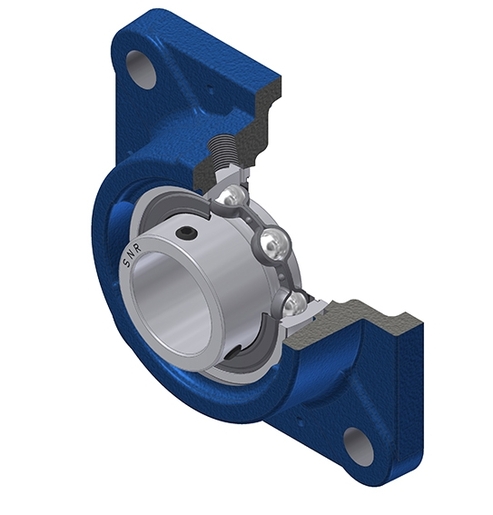

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US211-32G2T04 - FE211
PLEASE LOGIN to add products to your basket
Contact us

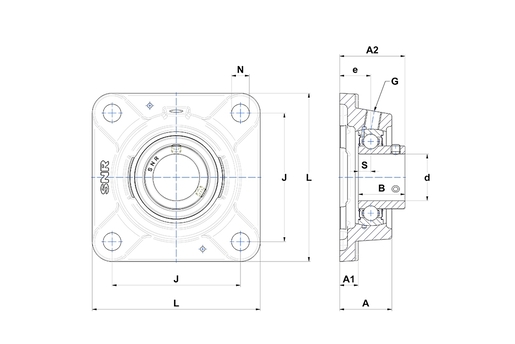

PRODUCT DEFINITION
BrandSNR
A - Housing height48,5 mm
A1 - Housing foot height / flange height15 mm
A2 - Total height from mounting surface64,5 mm
B - Width of Inner Ring45,3 mm
d - Shaft diameter50,8 mm
e - Distance mounting surface to bearing center31 mm
G - Grease fittingR1/8"
J - Mounting holes distance130 mm
L - Housing width / diameter162 mm
N - Mounting hole dimension18 mm
S - Distance front side/bearing centre11,8 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating43,55 kN
C0 - Static load rating29,2 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass3,64 kg
Recommended tightening torque for set screw8 N-m
