USFL211-35T20CC - SNR

USFL211-35T20CC

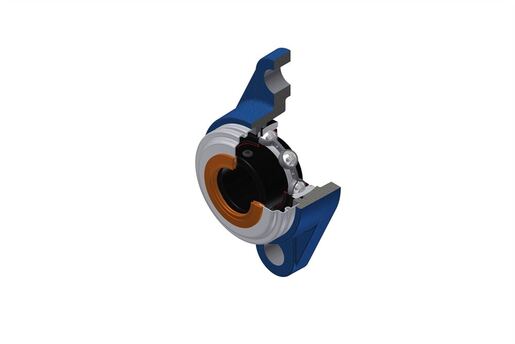

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US211-35G2T20 - FL211N - SCC211
PLEASE LOGIN to add products to your basket
Contact us
Specs

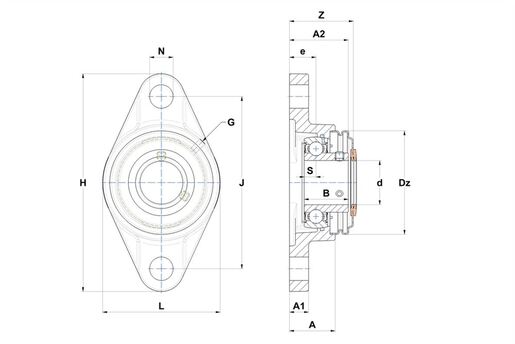

PRODUCT DIMENSIONS

Housing height (A) 43 mm
Housing foot height / flange height (A1) 18 mm
Total height (Housing + Insert) from mouting surface (A2) 58,5 mm
Width of IR (B) 45,3 mm
Shaft dia (d) 55,563 mm
Outer dia of cover (Dz) 110 mm
Distance mounting surface - bearing center (e) 25 mm
Grease fitting (G) M6x1
Housing length, width or diameter (H) 224 mm
Mounting hole distance (J) 184 mm
Housing width / dia (L) 130 mm
Mounting hole dimension (N) 19 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 11,8 mm
width over covers 64,3 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 43,55 kN
Static load rating (C0) 29,2 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 3,001 kg
Recommended tightening torque for set screw [Nm] 8 N-m
