USP206T04 - SNR

USP206T04

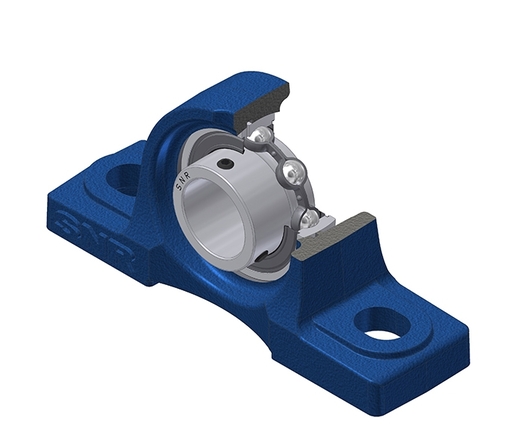

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

3D file

Technical datasheet

KitThis kit contains the following reference(s) - US206G2T04 - P206
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

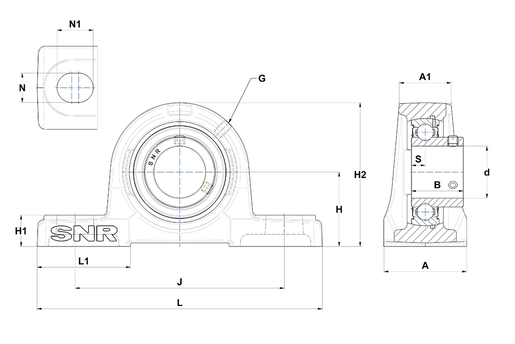

A - Housing width48 mm
A1 - Housing top width30 mm
B - Width of Inner Ring30 mm
d - Shaft diameter30 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.42,9 mm
H1 - Housing foot height18 mm
H2 - Housing height83 mm
J - Mounting holes distance121 mm
L - Housing length165 mm
L1 - Housing foot length54 mm
N - Mounting hole dimension17 mm
N1 - Mounting hole length21 mm
S - Distance front side/bearing centre8 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating19,5 kN
C0 - Static load rating11,2 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass1,31 kg
Recommended tightening torque for set screw5,5 N-m
