USP211-32NT04 - SNR

USP211-32NT04

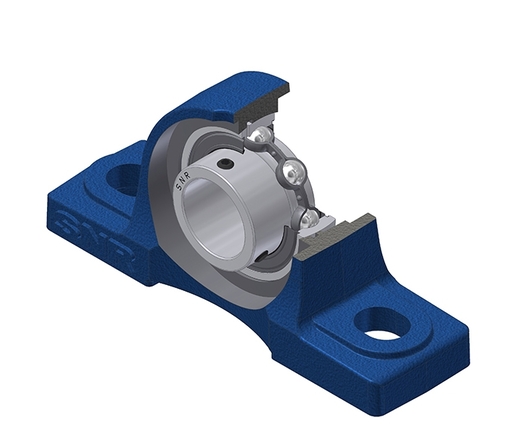

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US211-32G2T04 - P211N
PLEASE LOGIN to add products to your basket
Contact us

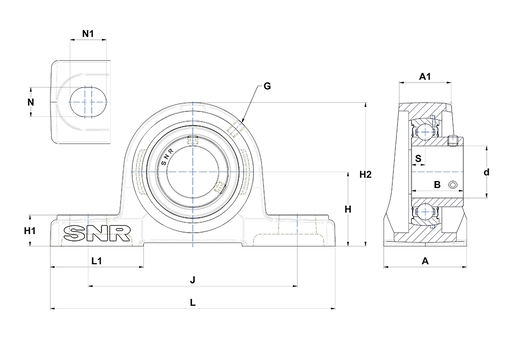

PRODUCT DEFINITION
BrandSNR
A - Housing width60 mm
A1 - Housing top width40 mm
B - Width of Inner Ring45,3 mm
d - Shaft diameter50,8 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.63,5 mm
H1 - Housing foot height22 mm
H2 - Housing height126 mm
J - Mounting holes distance171 mm
L - Housing length219 mm
L1 - Housing foot length70 mm
N - Mounting hole dimension20 mm
N1 - Mounting hole length25 mm
S - Distance front side/bearing centre11,8 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating43,55 kN
C0 - Static load rating29,2 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass3,5 kg
Recommended tightening torque for set screw8 N-m
