Grey cast housing, radial insert ball bearing with socket set screws, single lip seal.

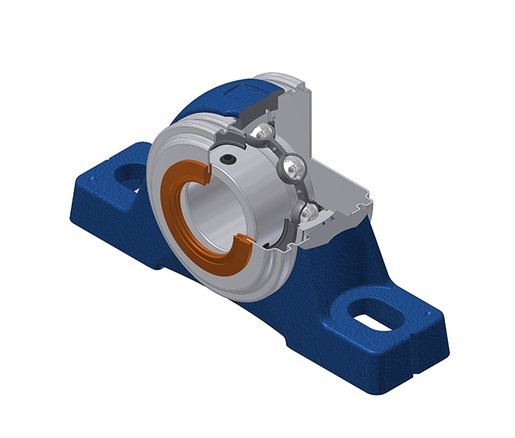

In the figure, bearing units are presented with one open and one closed cover. The product you have chosen is equipped with two open covers.
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

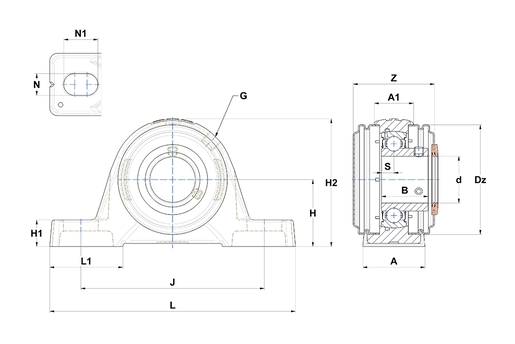

|Housing width (A)||60 mm|
|Housing top width (A1)||35 mm|
|Width of IR (B)||45,3 mm|
|Shaft dia (d)||55,563 mm|
|Outer dia of cover (Dz)||110 mm|
|Grease fitting (G)||System.Collections.Generic.List`1[System.String]|
|Distance mounting base to centerline spheric. seating diam. (H)||63,5 mm|
|Housing foot height (H1)||22,5 mm|
|Housing height (H2)||124,5 mm|
|Mounting hole distance (J)||176 mm|
|Housing length (L)||222 mm|
|Housing foot length (L1)||68 mm|
|Mounting hole dimension (N)||System.Collections.Generic.List`1[System.String]|
|Mounting hole length (N1)||30 mm|
|Dist. cent. of raceway to face IR on side opp. lock. device (S)||11,8 mm|
|width over covers||52,6 mm|
|Dynamic load rating (C)||43,55 kN|
|Static load rating (C0)||29,2 kN|
|Operating temperature min.||-20 °C|
|Operating temperature max.||100 °C|
|Recommended tightening torque for set screw [Nm]||8 N-m|
