USPLE206-19NT04 - SNR

USPLE206-19NT04

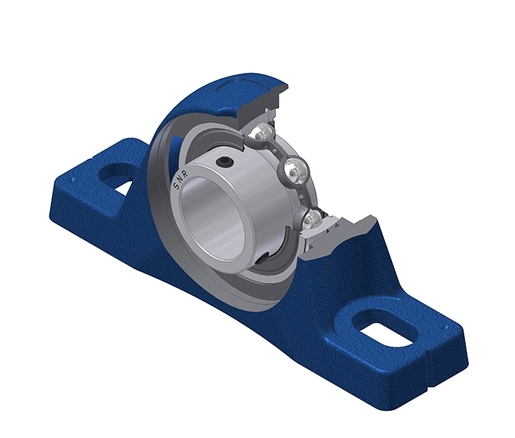

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s)- US206-19G2T04- PLE206N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

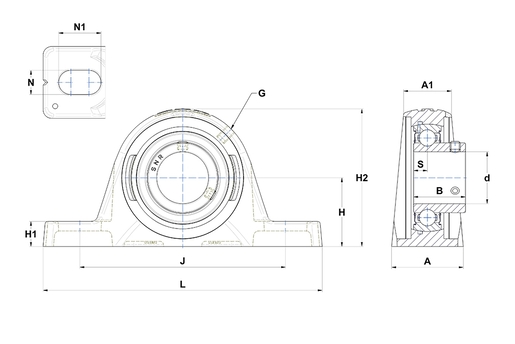

A - Housing width41,5 mm
A1 - Housing top width27,5 mm
B - Width of Inner Ring30 mm
d - Shaft diameter30,163 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.39,7 mm
H1 - Housing foot height14,5 mm
H2 - Housing height79,5 mm
J - Mounting holes distance119 mm
L - Housing length161,5 mm
N - Mounting hole dimension14 mm
N1 - Mounting hole length24,5 mm
S - Distance front side/bearing centre8 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating19,5 kN
C0 - Static load rating11,2 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass0,85 kg
Recommended tightening torque for set screw3,7 N-m
