USPLE206-20T20CO - SNR


Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for high-temp. applications.

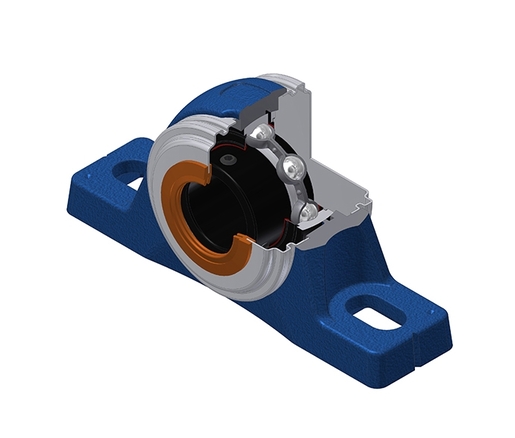

In the figure, bearing units are presented with one open and one closed cover. The product you have chosen is equipped with two open covers.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.


Technical datasheet

KitThis kit contains the following reference(s)- US206-20G2T20- SCOU206-20 (x2)- PLE206N
PLEASE LOGIN to add products to your basket
Contact us

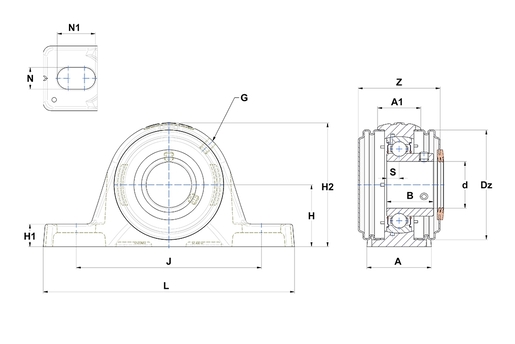

A - Housing width41,5 mm
A1 - Housing top width27,5 mm
B - Width of Inner Ring30 mm
d - Shaft diameter31,75 mm
Dz - Outer diameter of cover70 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.39,7 mm
H1 - Housing foot height14,5 mm
H2 - Housing height79,5 mm
J - Mounting holes distance119 mm
L - Housing length161,5 mm
N - Mounting hole dimension14 mm
N1 - Mounting hole length24,5 mm
S - Distance front side/bearing centre8 mm
Z - Width over covers52,7 mm
Product classification image
C - Dynamic load rating19,5 kN
C0 - Static load rating11,2 kN
Operating temperature min.-20 °C
Operating temperature max.200 °C
Mass0,928 kg
Recommended tightening torque for set screw3,7 N-m
