USPLE209-27N - SNR

USPLE209-27N

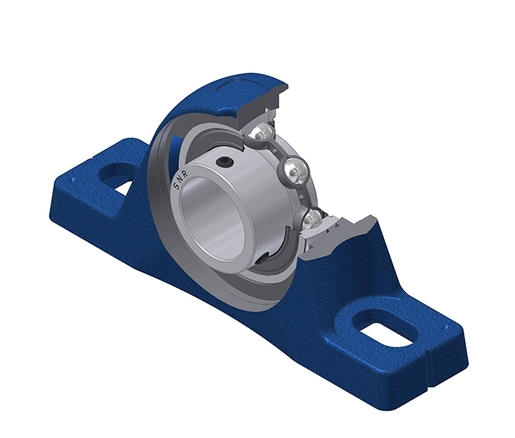

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - US209-27G2 - PLE209N
PLEASE LOGIN to add products to your basket
Contact us

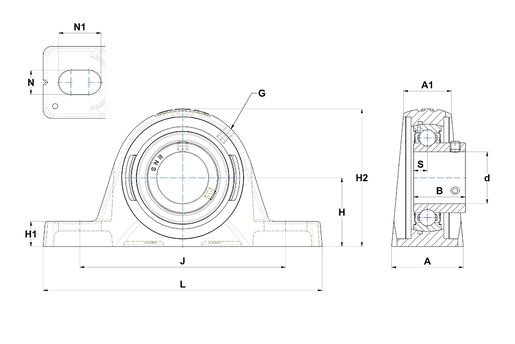

PRODUCT DEFINITION
BrandSNR
A - Housing width54 mm
A1 - Housing top width35 mm
B - Width of Inner Ring41,2 mm
d - Shaft diameter42,863 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.52,4 mm
H1 - Housing foot height18,4 mm
H2 - Housing height106,4 mm
J - Mounting holes distance151,5 mm
L - Housing length197,5 mm
N - Mounting hole dimension14 mm
N1 - Mounting hole length24 mm
S - Distance front side/bearing centre10,2 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating31,85 kN
C0 - Static load rating20,8 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass2,12 kg
Recommended tightening torque for set screw8 N-m
