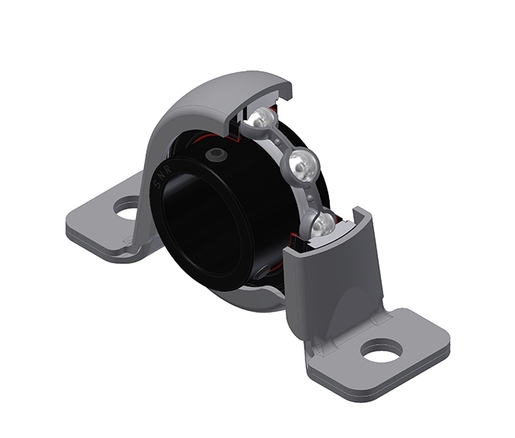

Sheet metal housing, radial insert ball bearing with socket set screws, single lip seal, for high-temp. applications
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
Technical datasheet
Specs

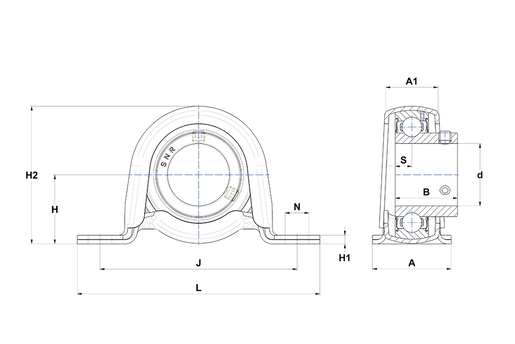

PRODUCT DIMENSIONS | |
|---|---|
| Housing width (A) | 25,4 mm |
| Housing top width (A1) | 15,9 mm |
| Width of IR (B) | 22 mm |
| Shaft dia (d) | 15 mm |
| Distance mounting base to centerline spheric. seating diam. (H) | 22,2 mm |
| Housing foot height (H1) | 2,4 mm |
| Housing height (H2) | 43,2 mm |
| Mounting hole distance (J) | 68 mm |
| Housing length (L) | 85,7 mm |
| Mounting hole dimension (N) | 9 mm |
| Dist. cent. of raceway to face IR on side opp. lock. device (S) | 6 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (C) | 9,55 kN |
| Static load rating (C0) | 4,78 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 200 °C |
OTHER FEATURES | |
|---|---|
| Mass | 0,18 kg |
| Recommended tightening torque for set screw [Nm] | 3,5 N-m |
