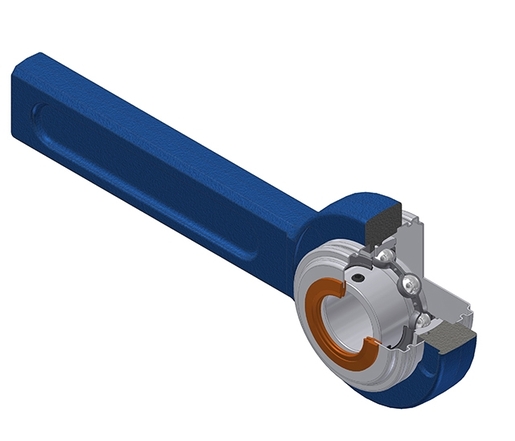

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal.
In the figure, bearing units are presented with one open and one closed cover. The product you have chosen is equipped with two open covers.
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

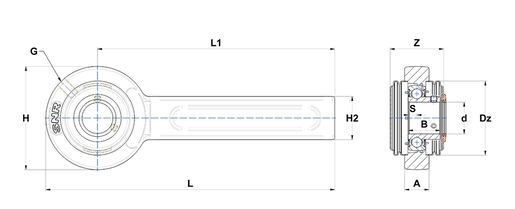

|Housing width (A)||21 mm|
|Total height - frame + insert (A5)||16 mm|
|Width of IR (B)||22 mm|
|Shaft dia (d)||12 mm|
|Outer dia of cover (Dz)||46 mm|
|Grease fitting (G)||R1/8"|
|Housing length, width or diameter (H)||78 mm|
|Housing height / width (H2)||41 mm|
|Housing length (L)||264 mm|
|Distance from attachment end face to bearing centerline (L1)||225 mm|
|Dist. cent. of raceway to face IR on side opp. lock. device (S)||6 mm|
|Wrench size (SW)||2,5 mm|
|width over covers||27,8 mm|
|Dynamic load rating (C)||9,55 kN|
|Static load rating (C0)||4,78 kN|
|Operating temperature min.||-20 °C|
|Operating temperature max.||100 °C|
|Recommended tightening torque for set screw [Nm]||3,5 N-m|
