UST209-26T20CO - SNR


Grey cast housing, radial insert ball bearing with socket set screws, single lip seal, for high-temp. applications.

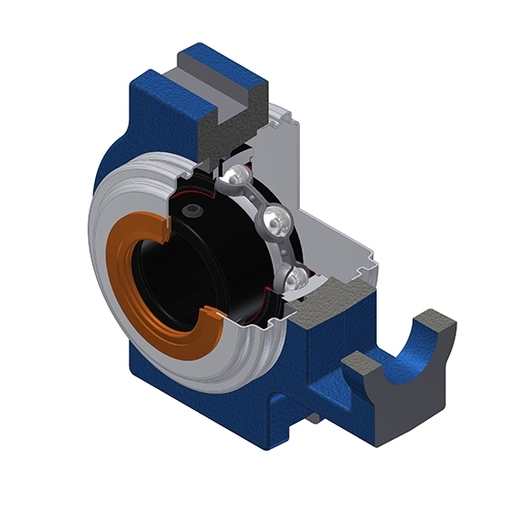

In the figure, bearing units are presented with one open and one closed cover. The product you have chosen is equipped with two open covers.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.


Technical datasheet

KitThis kit contains the following reference(s)- US209-26G2T20- SCOU209-26 (x2)- T209N
PLEASE LOGIN to add products to your basket
Contact us

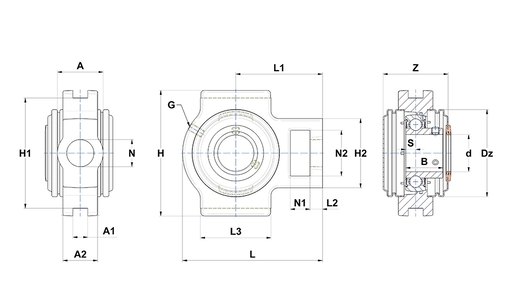

A - Housing width49 mm
A1 - Width of location slot16 mm
A235 mm
B - Width of Inner Ring41,2 mm
d - Shaft diameter41,275 mm
Dz - Outer diameter of cover95 mm
G - Grease fittingM6x1
H - Housing length, width or diameter117 mm
H1 - Distance between location slots102 mm
H2 - Housing height / width83 mm
L - Housing length144 mm
L1 - Distance attachment end face to bearing centerline87 mm
L2 - Thickness of attachment end16 mm
L3 - Length of guidance slot/face83 mm
N - Mounting hole dimension29 mm
N1 - Length of attachment slot19 mm
N2 - Height of attachment slot49 mm
S - Distance front side/bearing centre10,2 mm
Z - Width over covers70,2 mm
Product classification image
C - Dynamic load rating31,85 kN
C0 - Static load rating20,8 kN
Operating temperature min.-20 °C
Operating temperature max.200 °C
Mass2,512 kg
