WS81209 - NTN

WS81209

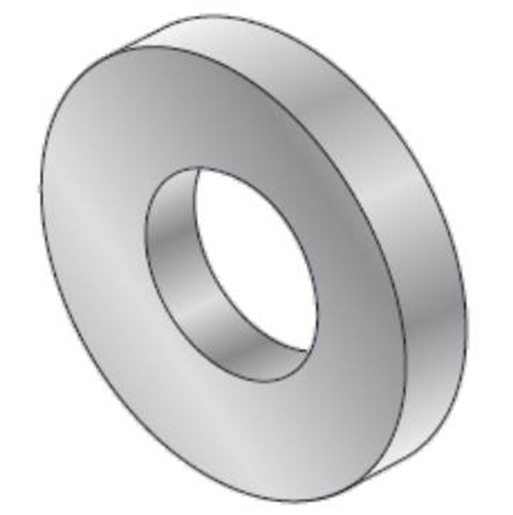

Needle roller bearing, thrust needle roller bearing, inner ring

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

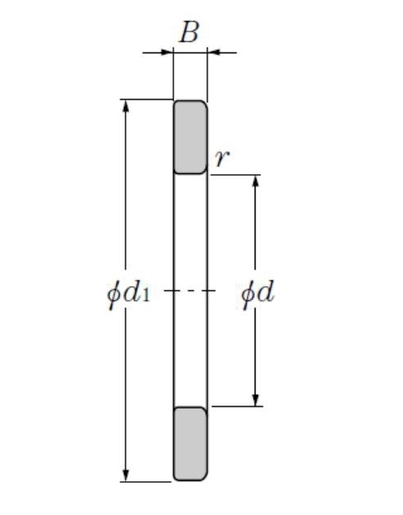

PRODUCT DIMENSIONS

Bore diameter of support washer IR - WS (d) 45 mm
External diameter of support washer IR - WS (d1) 73 mm
Ring thickness (B) 5,5 mm
Min fillet radius (rs) 1 mm
Bearing ring (inner ring) WS mass 0,105 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Min operating temperature (Tmin) -20 °C
Max operating temperature (Tmax) 120 °C
