EXF209N

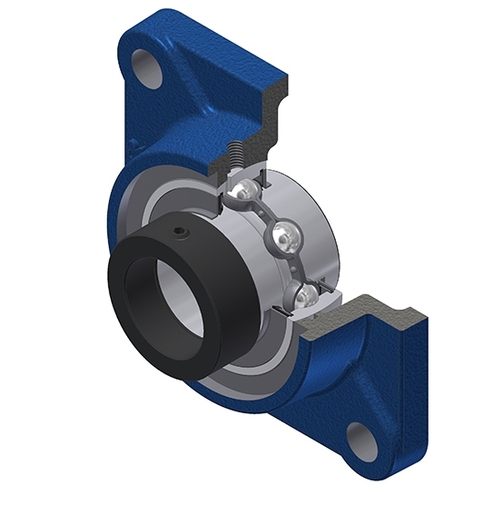

Grey cast housing, radial insert ball bearing with eccentric locking collar, seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX209G2 - F209N
PLEASE LOGIN to add products to your basket
Contact us
Specs

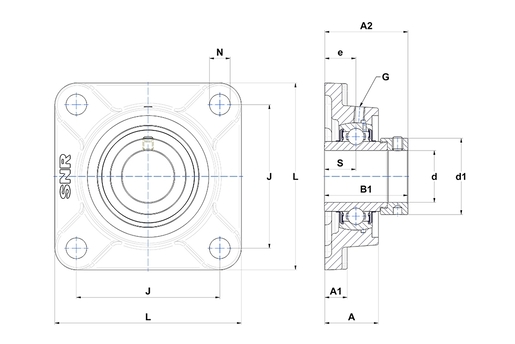

PRODUCT DEFINITION

A - Housing height 38 mm
A1 - Housing foot height / flange height 16 mm
A2 - Total height from mounting surface 56,9 mm
B - Width of Inner Ring 42,8 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 56,3 mm
d - Shaft diameter 45 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 62 mm
e - Distance mounting surface to bearing center 22 mm
G - Grease fitting M6x1
J - Mounting holes distance 105 mm
L - Housing width / diameter 137 mm
N - Mounting hole dimension 16 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 21,4 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 31,85 kN
C0 - Static load rating 20,8 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 2,28 kg
Recommended tightening torque for set screw 11,5 N-m
