EXFE209COE - SNR

EXFE209COE

Grey cast housing, radial insert ball bearing with eccentric locking collar, seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX209G2 - SCOE209-45 - FE209N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

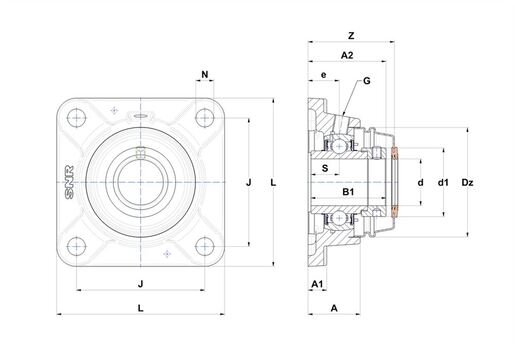

A - Housing height40 mm
A1 - Housing foot height / flange height13 mm
A2 - Total height from mounting surface58,9 mm
B - Width of Inner Ring42,8 mm
B1 - Overall width Inner Ring56,3 mm
d - Shaft diameter45 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve62 mm
Dz - Outer diameter of cover95 mm
e - Distance mounting surface to bearing center24 mm
G - Grease fittingR1/8"
J - Mounting holes distance105 mm
L - Housing width / diameter137 mm
N - Mounting hole dimension14 mm
S - Distance front side/bearing centre21,4 mm
Z - Width over covers65,5 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating31,85 kN
C0 - Static load rating20,8 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass2,468 kg
Recommended tightening torque for set screw11,5 N-m
