EXFE215L3 - SNR

EXFE215L3

Grey cast housing, radial insert ball bearing with eccentric locking collar, triple lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX215G2L3 - FE215
PLEASE LOGIN to add products to your basket
Contact us
Specs

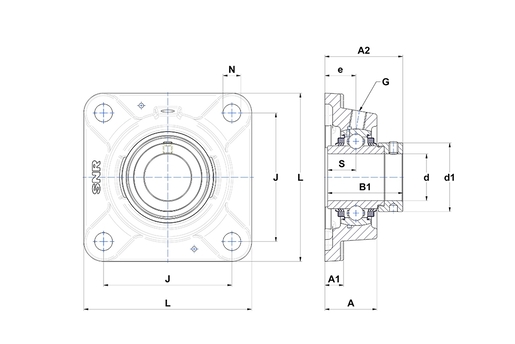

PRODUCT DEFINITION

A - Housing height 59 mm
A1 - Housing foot height / flange height 20 mm
A2 - Total height from mounting surface 96,1 mm
B - Width of Inner Ring 74,6 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 92,1 mm
d - Shaft diameter 75 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 102 mm
e - Distance mounting surface to bearing center 41,3 mm
G - Grease fitting R1/8"
J - Mounting holes distance 153 mm
L - Housing width / diameter 197 mm
N - Mounting hole dimension 23 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 37,3 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 66 kN
C0 - Static load rating 49,5 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 6,89 kg
Recommended tightening torque for set screw 22 N-m
