EXP209-26T20 - SNR


Grey cast housing, radial insert ball bearing with eccentric locking collar, labyrinth seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.


Technical datasheet

KitThis kit contains the following reference(s)- EX209-26G2T20- P209
PLEASE LOGIN to add products to your basket
Contact us

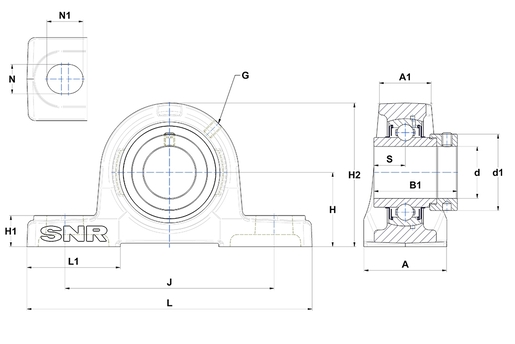

A - Housing width54 mm
A1 - Housing top width37 mm
B - Width of Inner Ring42,8 mm
d - Shaft diameter41,275 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve62 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.54 mm
H1 - Housing foot height20 mm
H2 - Housing height108 mm
J - Mounting holes distance146 mm
L - Housing length190 mm
L1 - Housing foot length60 mm
N - Mounting hole dimension17 mm
N1 - Mounting hole length23 mm
S - Distance front side/bearing centre21,4 mm
Product classification image
C - Dynamic load rating31,85 kN
C0 - Static load rating20,8 kN
Operating temperature min.-20 °C
Operating temperature max.200 °C
Mass2,66 kg
Recommended tightening torque for set screw8 N-m
