H3056H - SNR

H3056H

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - HM3056 - MS3056
PLEASE LOGIN to add products to your basket
Contact us
Specs

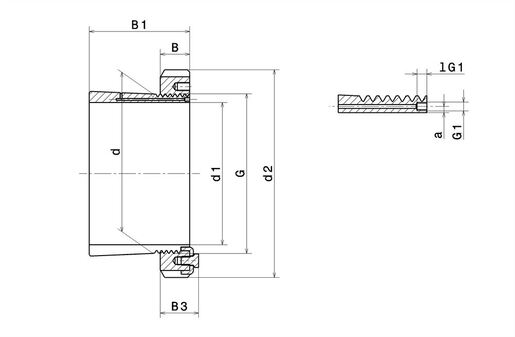

PRODUCT DIMENSIONS

Sleeve bore diameter (d1) 260 mm
Internal diameter (d) 280 mm
Outer diameter of locknut (d2) 330 mm
Sleeve length (B1) 152 mm
Nut width (B) 38 mm
Distance between bearing face and screw head (B3) 50 mm
Thread designation (G) Tr280X4
Associated bearing 23056
Bore Tapered 1:12
Mass 17,7 kg
Brand SNR
