KR22FLL/3AS - NTN

KR22FLL/3AS

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

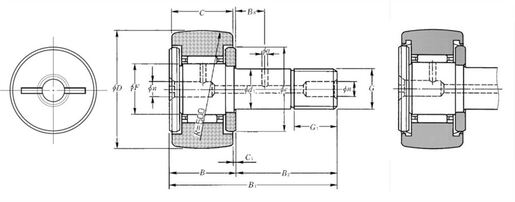

PRODUCT DIMENSIONS

External diameter (D) 22 mm
Stud diameter (d1) 10 mm
Width of bearing, drawn cup or outer ring (C) 12 mm
Under roller diameter F 12 mm
Bearing/Inner ring width (B) 13 mm
Total stud length (B1) 36 mm
Stud rod length (B2) 23 mm
Stud thread designation (G) M10X1.25
Thread length of the stud (G1) 12 mm
Distance between roller face and washer face (C1) 0,6 mm
Axial lubrication hole diameter (n) 4 mm
Inlet diameter of roller or washer (e) 17 mm
Track roller radius (R) 500 mm
Maximum tightening torque 14 N-m
Bearing with/without cage With
Radial clearance class CN
Precision class P0
Mass 0,046 kg
Brand NTN

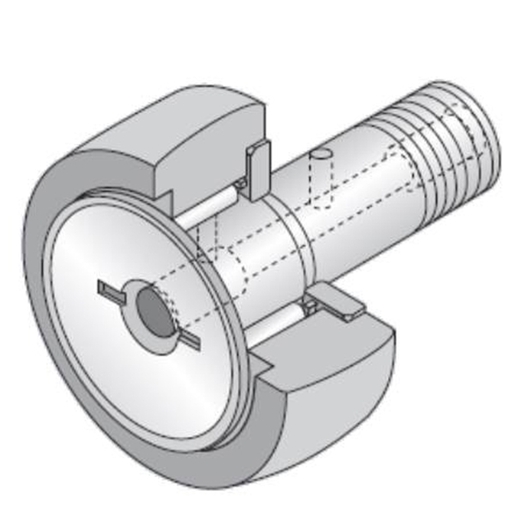

Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (Cr) 5,3 kN
Static load rating (C0r) 6,65 kN
Track load capacity spherical outer ring 1,69 kN
Nlim (grease) 10000 tr/min
Min operating temperature (Tmin) -20 °C
Max operating temperature (Tmax) 100 °C
