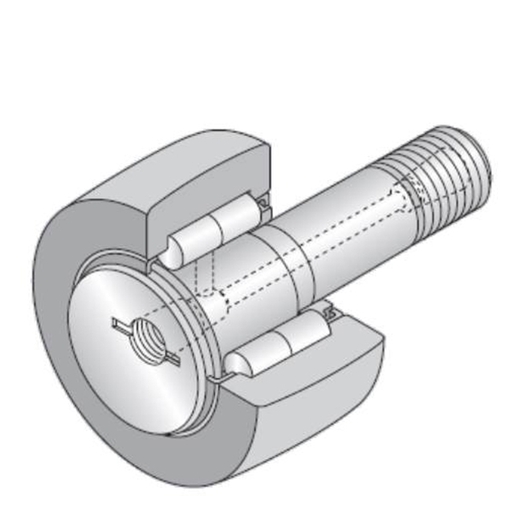

Needle roller bearing, cam follower, full-complement cylindrical roller, slot for screwdriver, tapped holes, double-side shields, spherical outer ring
Log in
To add this product to your basketDocumentation
Product information

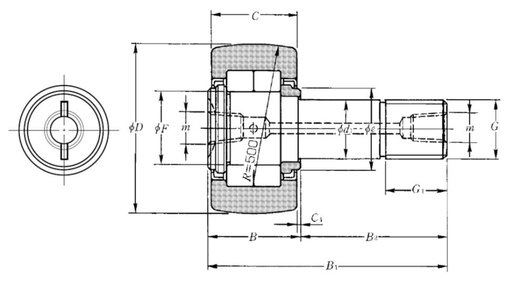

| PRODUCT DEFINITION | |
|---|---|
| Brand | NTN |
| D - External diameter | 47 mm |
| d1 - Stud diameter | 20 mm |
| C - Width of bearing, drawn cup or outer ring | 24 mm |
| F - Under roller diameter | 25,5 mm |
| B - Bearing/Inner ring width | 25,5 mm |
| B1 - Total stud length | 66 mm |
| B2 - Stud rod length | 40,5 mm |
| G - Stud thread designation | M20X1.5 |
| G1 - Thread length of the stud | 21 mm |
| C1 - Distance between roller face and washer face | 0,8 mm |
| m - Designation of the threaded lubrication hole | Rc 1/8 |
| e - Inlet diameter of roller or washer | 27 mm |
| R - Track roller radius | 500 mm |
| Maximum tightening torque | 98 N-m |
| Bearing with/without cage | Sans |
| Radial clearance class | CN |
| Precision class | P0 |
| Mass | 0,38 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| Cr - Dynamic load rating | 38,5 kN |
| C0r - Static load rating | 48 kN |
| Track load capacity spherical outer ring | 4,7 kN |
| N lim - Grease lubrication limit speed | 4000 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
